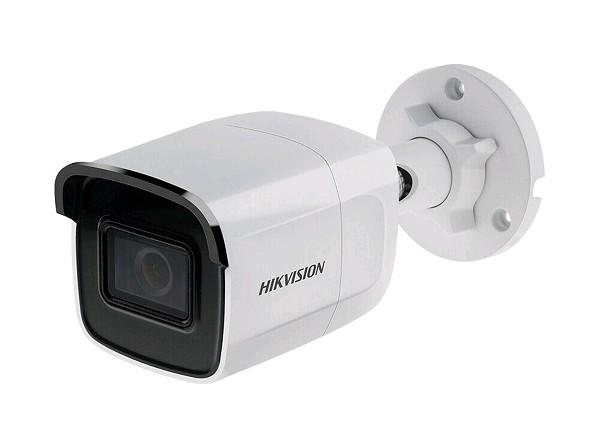

Hikvision DS-2CD2021G1-I/ 2 MP WDR Fixed Mini Bullet Network Camera/H.265+/WDR technology/EXIR/IP67/Support up to 256GB SD card storage

Description

Hikvision DS-2CD2021G1-I/ 2 MP WDR Fixed Mini Bullet Network Camera/H.265+/WDR technology/EXIR/IP67/Support up to 256GB SD card storage

Specification:

– Camera
– Image Sensor: 1/2.7″ Progressive Scan CMOS
– Min. Illumination: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
– Shutter Speed: 1/3 s to 1/100,000 s
– Slow Shutter: Yes
– Wide Dynamic Range: 120 dB
– Day & Night: IR Cut Filter
– Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
–
– Lens
– Focus: Fixed
– Focal Length & FOV: 2.8 mm：horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9°
– 4 mm：horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°
– 6 mm：horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°
– Lens Mount: M12
– Aperture: f1.6
–
– Illuminator
– IR Range: Up to 30 m
– Wavelength: 850 nm
–
– Video
– Max. Resolution: 1920 × 1080
– Main Stream: 50Hz: 25 fps (1920 × 1080, 1280 × 720)
– 60Hz: 30 fps (1920 × 1080,1280 × 720)
–
– Sub-Stream: 50Hz: 25 fps (640 × 480, 640 × 360)
– 60Hz: 30 fps (640 × 480, 640 × 360)
– Video Compression: Main stream: H.265/H.264
– Sub-stream: H.265/H.264/MJPEG
– Video Bit Rate: 32 Kbps to 8 Mbps
– H.264 Type: Baseline Profile/Main Profile/High Profile
– H.265 Type: Main Profile
– H.264+: Main stream supports
– H.265+: Main stream supports
– Region Of Interest (ROI): Support 1 fixed region for mainstream
–
– Network
– Simultaneous Live View: Up to 6 channels
– API: Open Network Video Interface, ISAPI
– Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour，IPv4, UDP, SSL/TLS
– User/Host: Up to 32 users. 3 levels: administrator, operator and user
– Network Storage: Support Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
– Client: iVMS-4200, Hik-Connect, Hik-Central
– Web Browser: Plug-in required live view: IE 10+
– Plug-in free live view: Chrome 57.0+, Firefox 52.0+
– Local service: Chrome 57.0+, Firefox 52.0+
–
– Image
– Day/Night Switch: Day/Night/Auto/Schedule
– Image Enhancement: BLC/3D DNR
– Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
–
– Interface
– On-Board Storage: Built-in Micro SD slot, up to 256 GB
– Hardware Reset: Yes
– Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
–
– Event
– Smart Event: Line crossing detection, intrusion detection
–
– General
– Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
– Package Dimension: 216mm × 121mm × 118mm (8.5″ × 4.8″ × 4.7)
– With Package Weight: Approx. 450 g (1.0 lb.)
– Web Client Language: 33 languages
– English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
– French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
– Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
– Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
– Power Supply: 12 VDC ± 25%
– PoE: 802.3af, class 3
– Power Interface: Ø 5.5 mm coaxial power plug
– Firmware Version: V5.5.120
– General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
– Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
– Power Consumption And Current: 12 VDC, 0.3 A, max. 4 W;
– PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 5.5 W
–
– Power Consumption And Current: 12 VDC, 0.3 A, max. 4 W; PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 5.5 W
– Camera Dimension: 69.7 mm × 67.9 mm × 171.4 mm (2.7″ × 2.7″ × 6.7″)
– Camera Weight: Approx. 350 g (0.8 lb.)
–
– Approval
– EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
– Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
– Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
– Protection: Ingress protection: IP67 (IEC 60529-2013)
