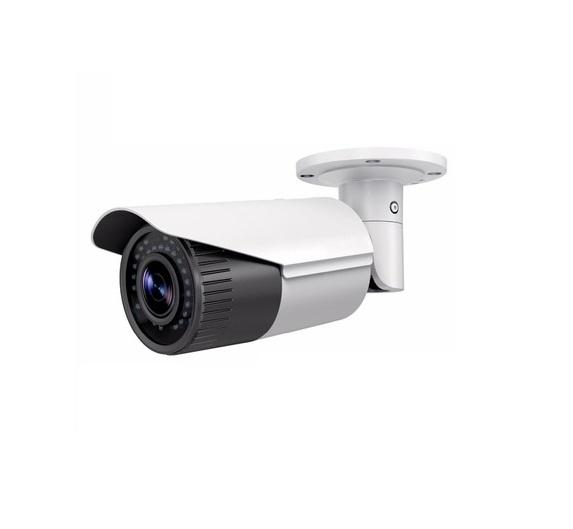

Hikvision DS-2CD1641FWD-IZ – Network camera – outdoorweatherproof/ color (Day&Night)/ 4 MP, 2688 x 1520/ f14 mount/ motorized/ LAN 10/100/ MJPEG,H.264/ DC 12 V / PoE

Description

Hikvision DS-2CD1641FWD-IZ – Network camera – outdoorweatherproof/ color (Day&Night)/ 4 MP, 2688 x 1520/ f14 mount/ motorized/ LAN 10/100/ MJPEG,H.264/ DC 12 V / PoE

Specifications:
– Image Sensor: 1/3″ progressive scan CMOS
– Min. Illumination: Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR
– Shutter: 1/3s to 1/100,000 s, support slow shutter
– Lens: 2.8 mm to 12 mm @F1.4, horizontal field of view: 108° to 31°
– Lens Mount: Φ14
– Day & Night: IR cut filter with auto switch

3-Axis Adjustment
– Pan: 0° to 355°,
– Tilt: 0°to 100°,
– Rotation:0° to 355°

– Digital Noise Reduction: 3D DNR
– Wide Dynamic Range: 120dB

Video Compression
– Main stream: H.264+/H.264
– Sub stream: H.264/ MJPEG

H.264 Type: Main profile/High profile
– Video Bit Rate: 32 Kbps to 16 Mbps
– Dual Stream: Yes
– Max. Resolution: 2688×1520

Main Stream Max. Frame Rate
– 50Hz: 20fps @(2688 × 1520), 20fps @(2304 × 1296), 25fps @(1920 × 1080, 1280 × 720)
– 60Hz: 20fps @(2688 × 1520), 20fps @(2304 × 1296), 30fps @(1920×1080, 1280 × 720)

Sub-stream Max. Frame Rate
– 50Hz: 25fps@(640 × 360, 352 × 288)
– 60Hz:30fps@(640 × 360, 352 × 240)

– Image Settings: Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
– Day/Night Switch: Support auto, scheduled
– Others: Mirror, BLC (area configurable), region of interest (support 1 fixed region)
– Network Storage: Support micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
– Detections: Motion detection
– Alarm Trigger: Video tampering, network disconnected, IP address conflicted, HDD full, HDD error
– Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
– Standard: ONVIF(PROFILE S,PROFILE G), PSIA, CGI, ISAPI
– General Function: One-key rest, anti-flicker,heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
– Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
– Reset: Support
– Power Supply: DC12V ± 25%, PoE (802.3af)
– Power Consumption: Max. 5.5 W/11 W (with -Z)
– Ingress Protection level: IP67
– IR Range: Up to 30 m
– Dimensions: 91.6 mm ×105 mm ×294.5 mm (3.6″× 4.1″× 11.6″)
