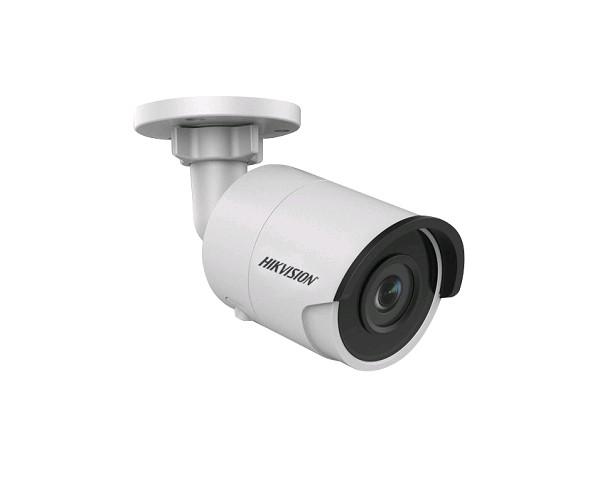

Hikvision DS-2CD2055FWD-I/Exir Mini Bullet/2-Line IPC-G1/2.8mm/5MP/IP67/120dB WDR

Description

Hikvision DS-2CD2055FWD-I/Exir Mini Bullet/2-Line IPC-G1/2.8mm/5MP/IP67/120dB WDR

Specifications:
Camera
– Image Sensor: 1/2.9″ Progressive Scan CMOS
– Signal System: PAL/NTSC
– Min. Illumination: Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
– Shutter time: 1/3 s to 1/100,000 s
– Slow shutter: Support

Lens
– 2.8 mm, horizontal field of view: 97°
– 4 mm, horizontal field of view: 78°
– 6 mm, horizontal field of view: 60°
– 8 mm, horizontal field of view: 39.5°
– 12 mm, horizontal field of view: 19°

– Lens Mount: M12
– Adjustment Range: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
– Day& Night: IR cut filter with auto switch
– Wide Dynamic Range: 120 dB
– Digital noise reduction: 3D DNR
– Focus: Fixed

Compression Standard
– Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
– Video bit rate: 32Kbps~16Mbps
– Triple Streams: Yes

– Max. Image Resolution: 2944 × 1656

Frame Rate
– 50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
– 60Hz: 20 fps (2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream
– 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
– 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
–
Third Stream
– 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
– 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

– Image Enhancement: BLC/3D DNR/ROI/HLC
– Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
– ROI: Support 1 fixed region for main stream and sub stream separately
– Day/Night Switch: Day/Night/Auto/Schedule

Network
– Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
– Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
– General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
– mask, Watermark, IP address filtering
– System Compatibility: ONVIF (Profile S, Profile G), ISAPI

Interface
– Communication Interface: 1 RJ45 10M / 100M Ethernet interface
– On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
– Reset Button: Yes

Smart Feature-set
– Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
– Line Crossing Detection: Cross a pre-defined virtual line
– Intrusion Detection: Enter and loiter in a pre-defined virtual region
– Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
– Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
– Exception Detections: Scene change detection
– Recognition: Face Detection

General
– Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
– Power Consumption: 12 VDC ± 25%, 6W
– PoE(802.3af, class 3), 7W
– Weather Proof: IP67
– IR Range: Up to 30m

Dimensions
– Camera: 70 × 155.03 mm (2.76″ × 6.1″)
