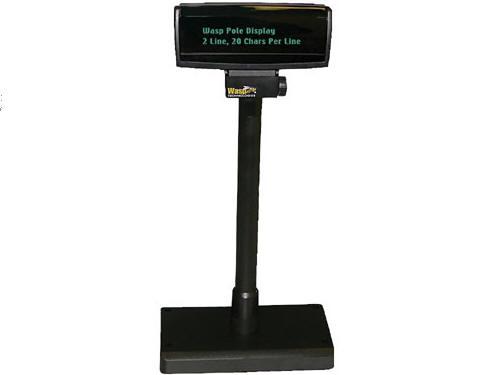

Wasp Technology, POS Pole Display USB, wpd-220vf

Description

Wasp Technology, POS Pole Display USB, wpd-220vf

Overview
– Easily read displayed information with the 40 character (20 columns x 2 lines) and blue-green display color.
– The display can be rotated 270 degrees and the view angle from 5 to 25 degrees giving you maximum flexibility to present the display�s
information.
– Rated at over 25,000 hours of use before failure.
– Compact design takes up only a small space in your work areas.

Specifications
– Display method: vacuum fluorescent display
– Display color: blue green
– Number of characters: 40 character (20 columns
x 2 lines)
– Brightness: 700 cd/m2
– Character type: 96 alphanumeric
– Character font: 5 x 7 dot matrix, comma,
decimal point
– Character pitch: 2mm
– Interface: serial, parallel, USB (version 1.1)
(option: pass through)
– Power supply: 5VDC or 12 VDC or 24 VDC
– Power consumption: 5W
– MTBF: 25,000 hours
– View angle: 5-25 degrees
– Rotation angle: 270 degrees maximum
– Safety: CD, FCC Class B
