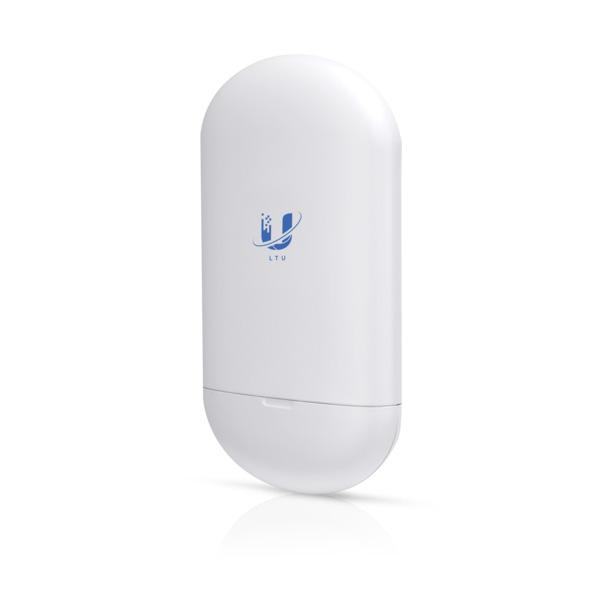

UBIQUITI LTU lite 5GHz LTU Client Radio 13dBi Integrated Antenna 10/20/30/40/50 MHz Channel Bandwidth PttMP CPE with Router Mode Support

Description

UBIQUITI LTU lite 5GHz LTU Client Radio 13dBi Integrated Antenna 10/20/30/40/50 MHz Channel Bandwidth PttMP CPE with Router Mode Support

Specifications

LTU-LITE
Dimensions: 153 x 84 x 39.5 mm
(6.02 x 3.31 x 1.56″)
Weight: 250 g
(8.82 oz)
Networking Interface: (1) 10/100/1000 Ethernet Port
Enclosure: Outdoor UV Stabilized Plastic
Max. Power Consumption: 8.5W
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 😎
Voltage Range: 22 – 26V
Max. Conducted TX Power: 22 dBm per Chain
Gain: 13 dBi
Cross-pol Isolation: 20 dB Minimum
Max. VSWR: 1.8:1
Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization: Dual Linear
Mounting: Pole-Mount Wall Mount (Kit Included)
Wind Loading: 20 N @ 200 km/h
(4.5 lbf @ 125 mph)
Wind Survivability: 200 km/h
(125 mph)
ESD/EMP Protection: ± 24kV Contact/Air
Operating Temperature: -40 to 60° C
(-40 to 140° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

OPERATING FREQUENCY (MHZ)
Worldwide: 2400 – 2483.5*
4800 – 6200*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 – 5250
5250 – 5350
5470 – 5725
5725 – 5850
EU 2400 – 2483.5
5150 – 5875
