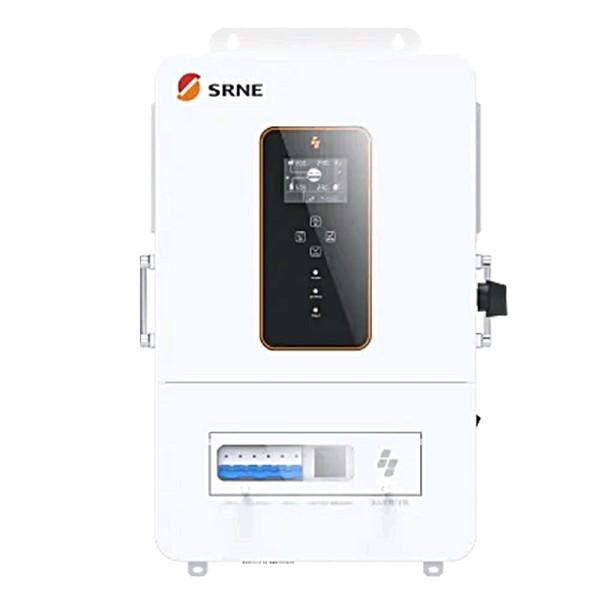

SRNE ASP48100U200-H 10KW Split Phase Hybrid Inverter With Wifi Dongle
Original price was: $300,000.00.$276,000.00Current price is: $276,000.00.
5 in stock
Description
SRNE ASP48100U200-H 10KW Split Phase Hybrid Inverter
– Brand: SRNE
– Model: ASP48100U200-H
– Type: All-in-One Off-Grid Solar Charge Inverter
– Rated Output Power: 10,000W (10KW)
– Maximum Peak Output Power: 20,000VA
– Output Waveform: Pure Sine Wave
– Output Voltage: 120V AC Single Phase / 240V AC Split Phase
– Output Frequency: 50/60Hz
– Motor Load Capacity: 6HP
– Battery Voltage: 48V DC
– Battery Voltage Range: 40–60V DC
– Battery Compatibility: Lithium-Ion, Lead-Acid and User-Defined
– Maximum Solar Charging Current: 200A
– Maximum Grid/Generator Charging Current: 120A
– Maximum Hybrid Charging Current: 200A
– Maximum PV Array Power: 11,000W (5,500W + 5,500W)
– MPPT Trackers: 2
– Maximum PV Input Current: 22A + 22A
– Maximum PV Open-Circuit Voltage: 500V DC per MPPT
– MPPT Voltage Range: 125–425V DC
– MPPT Tracking Efficiency: 99.9%
– Maximum Inverter Efficiency: 92%
– Transfer Time: Approximately 10ms
– Parallel Operation: Up to 6 Units
– Protection Rating: IP20 (Indoor Installation)
– Cooling: Built-in Fan
– Dimensions: 620 × 445 × 130mm
– Weight: Approximately 27kg
Additional information
| Weight | 10 kg |
|---|
