Description

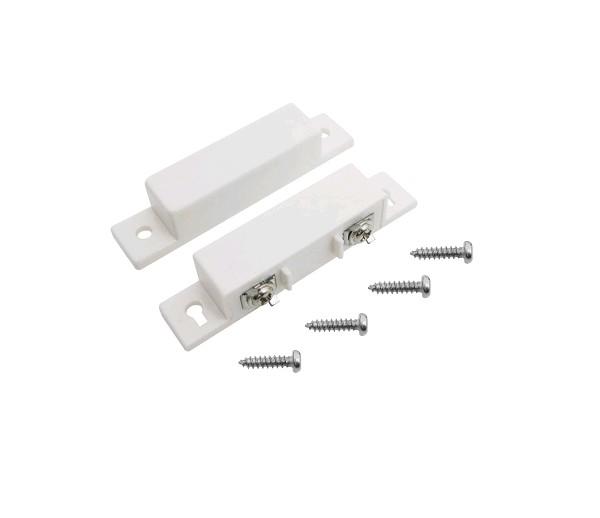

Magnetic Contact, No Pigtail, MC31 – CDE-3110
Overview
Magnetic contacts are divided into two series, the strong electric 220V and the weak electric 12V-24V Magnetic contacts. Magnetic contact consists of two parts. the switching section for wiring side (lead or terminal). There is a normally open switch or conversion type of reed inside the switch. When the door sensor is in working condition, the permanent magnets generate a constant magnetic field and will pull reel contacts, which will output switching signal (path alarm, circuit alarm) for alarm systems.
Specifications:
– Closed magnetic contact’s maximum switching voltage/current/power is 100VDC/0.5/10W
– Open and conversion type door magnetic maximum switching voltage/current/ power is 30VDC/0.2A/3W
– Strong electric door magnetic: 110V-220V,50W,0.5A
– The load which is through the magnetic contacts should not exceed the value of factory calibration, or the switch will be broken down
