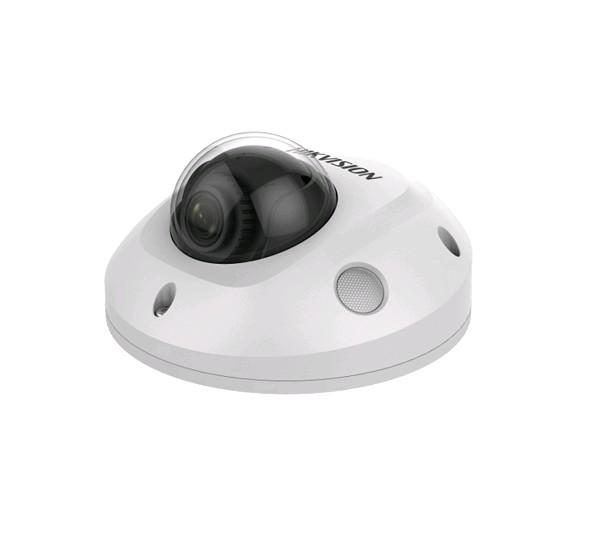

Hikvision DS-2CD2543G0-I(W)(S)/ 4 MP IR Fixed Mini Dome Network Camera/ 2688 × 1520@30fps /IR: up to 10 m /H.265, H.265+120dB /WDR Built-in Micro SD/SDHC/SDXC slot, up to 128 GB PoE EXIR/ Wi-Fi

Description

Hikvision DS-2CD2543G0-I(W)(S)/ 4 MP IR Fixed Mini Dome Network Camera/ 2688 × 1520@30fps /IR: up to 10 m /H.265, H.265+120dB /WDR Built-in Micro SD/SDHC/SDXC slot, up to 128 GB PoE EXIR

Specifications:
Camera
– Image Sensor: 1/3″ Progressive Scan CMOS
– Signal System: PAL/NTSC
– Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
– Shutter time: 1/3 s to 1/100,000 s
– Slow shutter: Support

Lens:
– 2.8 mm: Horizontal field of view: 98°, Vertical field of view: 55°, Diagonal field of view: 114°
– 4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 93°
– 6 mm: Horizontal field of view: 48°, Vertical field of view: 27°, Diagonal field of view: 54°

Lens Mount: M12
– Adjustment Range: Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
– Day& Night: IR Cut Filter
– Wide Dynamic Range: 120 dB
– Digital noise reduction: 3D DNR
– Focus: Fixed

Compression Standard
– Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
– H.264 code profile: Main Profile/High Profile
– Video bit rate: 256Kbps~16Mbps
– Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
– Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
– Triple Streams: Yes

– Max. Image Resolution: 2688 × 1520

Frame Rate:
– 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
– 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

Sub Stream:
– 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
– 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream:
– 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
– 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

– Image Enhancement: BLC/3D DNR/ROI/HLC
– Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
– ROI: Support 1 fixed region for main stream and sub-stream separately
– Day/Night Switch: Auto/Schedule/Day/Night/Triggered by Alarm In (-S model)

Network
– Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
– Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
– Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
– General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
– mask, Watermark, IP address filtering
– System Compatibility: ONVIF (Profile S, Profile G), ISAPI

Interface
– Audio: with -S model：2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block
– Communication Interface: 1 RJ45 10M / 100M Ethernet interface
– Alarm: with -S model：1 Input: Alarm in, 1 Output: Alarm out (max. 12 VDC, 30 mA),terminal block
– On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
– Reset Button: Yes

Audio
– Environment Noise Filtering: Support
– Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Smart Feature-set
– Behavior Analysis: Line crossing detection, intrusion detection
– Line Crossing Detection: Cross a pre-defined virtual line
– Intrusion Detection: Enter and loiter in a pre-defined virtual region
– Recognition: Face Detection

Wi-Fi Specification (-W)
– Wireless Standards: IEEE802.11b, 802.11g, 802.11n
– Frequency Range: 2.412 GHz to 2.4835 GHz
– Channel Bandwidth: 20/40MHz Support
– Security: WPA, WPA2
– Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
– Wireless Range: 50m(depend on environment)
– Protocols: 802.11b: DQPSK, DBPSK, CCK, 802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK

General
– Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
– Power Consumption: 12 VDC, 0.7A, max. 8.5W, Φ 5.5mm coaxial plug power
– PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W
– Impact Protection: IK08 Protection Level
– Weather Proof: IP66
– IR Range: Up to 10m
– Dimensions: 110 mm × 56.4 mm (4.3″ × 2.2″)
