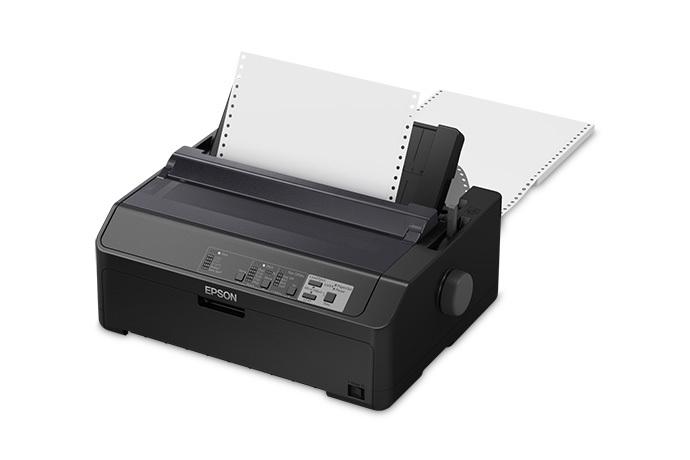

Epson FX 890ll Monochrome Dot-Matrix Printer 254mm – Man-syn: C11CF37201

Description

Epson FX 890ll Monochrome Dot-Matrix Printer 254mm – Man-syn: C11CF37201

Specification
General:
– Sound Level: 55 dB(A) (ISO 7779 pattern)
– Dimensions: 17.2″ x 14.8″ x 7″ (W x D x H)
– Weight: 15.8 lb
– Safety Approvals: UL62368-1, CAN/CSA C22.2 No. 60950-1, IEC/EN62368-1
– EMI: FCC part15 subpart B class A, ICES-003 Class A, EN55032 (CISPR pu.32) class A, As/NZS CISPR32 class A
– CE Markings: EN62368-1, EN55032 class A, EN61000-3-2, EN61000-3-3, E55024

Characters & Lines:
– Character Sets: 13 character tables
– 13 international countries character sets
– Resident Bitmapped Fonts: Ultra Speed Draft: 10, 12 cpi
– High Speed Draft: 10, 12, 15, 17, 20 cpi
– Draft: 10, 12, 15, 17, 20 cpi
– Near Letter Quality (Roman / Sans Serif): 10, 12, 15, 17, 20 cpi, proportional
– Bar Code Fonts: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5
– Characters per Line:
– 80 characters at 10 cpi
– 96 characters at 12 cpi
– 120 characters at 15 cpi
– 137 characters at 17 cpi
– 160 characters at 20 cpi
– Line Spacing: 6 lines per inch default
– Formatting: 1/6-inch or programmable in 1/432-inch increments
– 8 lpi option available on FX-890II Okidata Mode only

Print Other:
– Printing Technology: 9-pin, serial impact dot matrix
– Print Speed: Ultra Speed Draft: 738 cps (12 cpi), 615 CPS (10 cpi)
– High Speed Draft: 612 CPS (10 cpi)
– Draft: 463 CPS (10 cpi)
– Letter Quality: 115 CPS (10 cpi)
– Note: Normal print speed is achieved when printer safety cover is fully closed.
– Print Direction:
– Bidirectional logic seeking for text and graphics printing. Unidirectional text or graphics printing can be selected using software commands.
