Enforcer Seco-Larm, Shutter Magnetic Contacts – SM-226LQ

Description

Enforcer Seco-Larm, Shutter Magnetic Contacts – SM-226LQ

Specifications:
– Used for overhead doors in both industrial and residential situations where a wide gap is present
– Adjustable to fit most door-channel widths

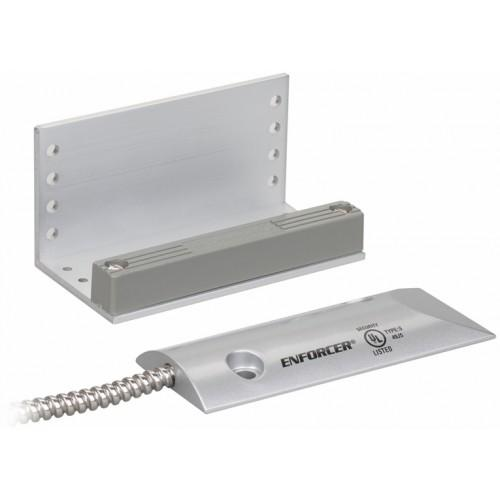

– Switch contained in curved low-profile cast-aluminum housing for surface mounting on garage floor
– Magnet enclosed in gray ABS case on L-bracket
– 24″ (61cm) wire leads enclosed in armored cable
– Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a longer expected life
– Circuit Type: N.C.
– Operation Gap: 2-3/4″, (70mm)
– Material – Magnet: ABS plastic on L-bracket
– Material – Switch: Heavy-duty cast-aluminum case
– Material – Terminals: 24″ (61cm) armored leads
– Contacts: Deactivated rhodium on gold under-plating
– Contact Rating: 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
– Switch Cycles: 50 Million (0.1mA@5VDC)
– Switch Dimensions: 4-11/32″ x 1-3/4″ x 27/64″ (110 x 44 x 11 mm)
– Magnet Dimensions: 3-15/16″ x 2″ x 2″ (100 x 51 x 51 mm)
– Magnet Type: Alnico 5
