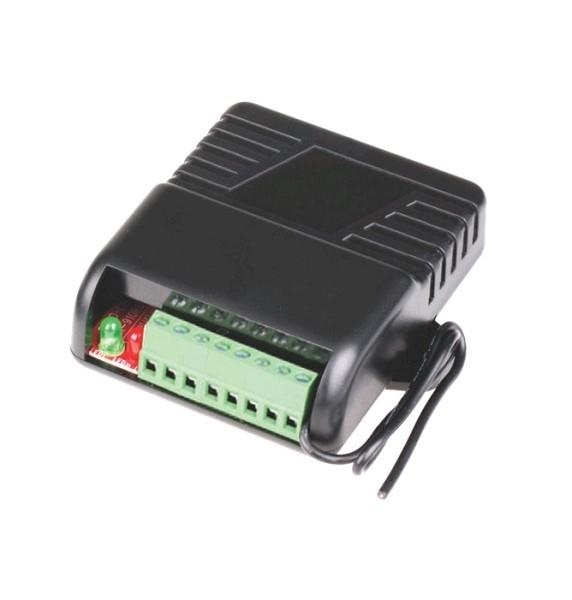

Enforcer 2-Channel RF Receiver, 2 Independently Programmable O/Ps – SK-910RB2Q/SK-910RD2

Name: Enforcer 2-Channel RF Receiver, 2 Independently Programmable O/Ps - SK-910RB2Q/SK-910RD2
SKU: 67654402323
Price: 11100.00 JMD
Availability: InStock

Enforcer 2-Channel RF Receiver, 2 Independently Programmable O/Ps – SK-910RB2Q Specifications: – Operating voltage: 11~24 VAC/VDC – Range: Up to 500′ (150m) with SECO-LARM transmitter. Range will vary. – Dimensions: 3-1/8″ x 2-9/16″ x 1″ (80 x 65 x 25 mm) – Output Mode: 4-Second momentary, toggle, latch, validity, 1-second momentary – Current Draw: 8mA@12VDC […]

10 in stock

SKU: 67654402323

Category: Access Control

Description

Enforcer 2-Channel RF Receiver, 2 Independently Programmable O/Ps – SK-910RB2Q

Specifications:
– Operating voltage: 11~24 VAC/VDC
– Range: Up to 500′ (150m) with SECO-LARM transmitter. Range will vary.
– Dimensions: 3-1/8″ x 2-9/16″ x 1″ (80 x 65 x 25 mm)
– Output Mode: 4-Second momentary, toggle, latch, validity, 1-second momentary
– Current Draw: 8mA@12VDC (standby), 30 mA per channel at 12 VDC (activated)
– # of Stored Transmitter Codes 15 per channel, 30 per receiver
– Extended Range Antenna Compatible: Yes (SK-91ERSD)
– Compatible Transmitters: Fixed Code: 68 Billion codes, CODEBUMP: 18 Quintillion codes
– Connectors: 8 Quick-connect screw terminals (+, -, with NO/NC/COM for channel 1 and NO/NC/COM for channel 2)
– Receiver Outputs: Two Form “C” dry relay contacts (N.O./N.C./COM); 10A@24VDC
