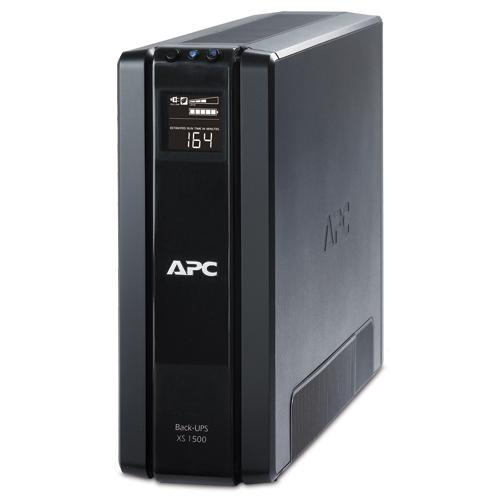

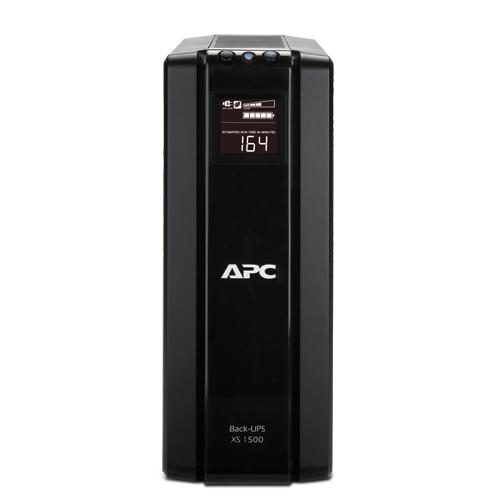

APC Back-UPS XS Series 1500VA – 865Watts W/LCD (BR1500G)

Description

APC Back-UPS XS Series 1500VA – 865Watts W/LCD (BR1500G)

Specifications:
Output
– Output power capacity: 900 Watts / 1.44 kVA
– Max Configurable Power (Watts): 900 Watts / 1.44 kVA
– Nominal Output Voltage: 120V
– Output Voltage Distortion: Less than 5%
– Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
– Topology: Line
– Interactive Waveform type Sine wave

Output Connections
– NEMA 5-15R (Battery Backup)
– Transfer Time 4ms typical : 8ms maximum

Input
– Nominal Input Voltage: 120V
– Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
– Input Connections: NEMA 5-15P
– Cord Length 1.83 meters
– Input voltage range for main operations: 93 – 130 V
– Input voltage adjustable range for mains operation: 85 – 136 V
– Number of Power Cords 1

Batteries & Runtime
– Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
– Typical recharge time 3 hour(s)
– Replacement Battery: RBC6
– RBC Quantity 1
– Battery Volt-Amp-Hour Capacity: 220

Communications & Management
– Interface Port(s) USB
– Control panel Multi-function LCD status and control console
– Audible Alarm Alarm when on battery, distinctive low battery alarm, configurable delays

Surge Protection and Filtering
– Surge energy rating 455 Joules
– Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449
