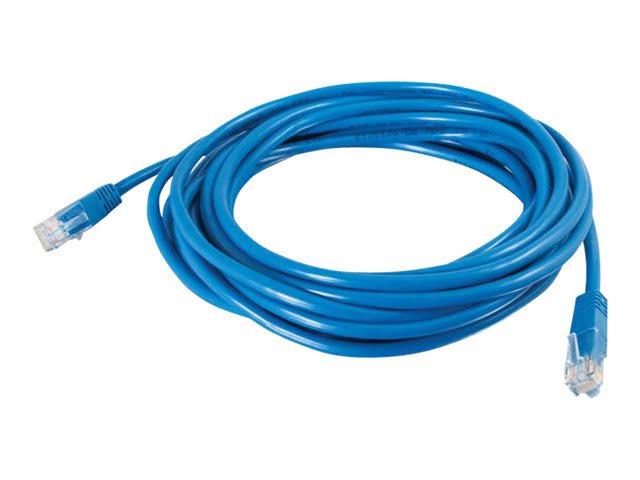

25ft Nexxt Patch Cord CAT5E Blue.

Description

25ft Nexxt Patch Cord CAT5E Blue

Specifications

Cable category: CAT5e
Cable type: U/UTP (Unshielded Twisted Pair)
Cable length: 25 ft (7.62 m)
Color: Blue
Conductor: Stranded copper
Wire gauge: 24 AWG
Number of pairs: 4 pairs
Number of conductors: 8 wires
Jacket material: PVC, CM-rated (75°C)
Average cable diameter: 5.5 ± 0.3 mm
Connector type: RJ45 male to RJ45 male
Connector housing: Clear molded polycarbonate (UL 94V-2)
Contact material: Nickel-plated phosphor bronze
Contact plating: Minimum 50 µin gold
Characteristic impedance: 100 Ω ±15%
Bandwidth: 100 MHz
Data transmission speed: Up to 100 Mbps
PoE support: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++)
Compatible with: 10BASE-T and 100BASE-TX Ethernet networks
Standards: ANSI/TIA/EIA-568-C.2, ISO/IEC 11801
Certifications: ETL Verified, UL Certified
